Iogear GCS1716KITU KVM Switch Item # 843478

 |

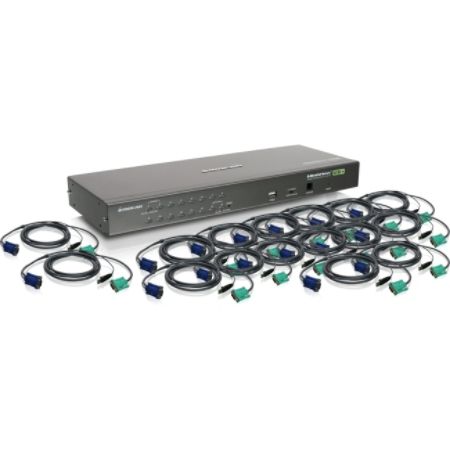

Iogear GCS1716KITU KVM Switch
$ 626 .99 / each $626.99
In Stock
Free delivery
Estimated delivery 7-10 business days

    Description

    The GCS1716KITU KVM is a combo switch, allowing access and control of up to 16 directly connected computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.The GCS1716 includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy, plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1716 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected machines.

    Back To Top

    Product Details

    Item # 843478
    OfficeMax # 23630162
    Manufacturer # GB3501
    height 1.7 in
    Daisy Chain Supported Yes
    width 17 in
    package contents GCS1716KITU KVM Switch; 1 x 2m USB KVM Cable; 1 x 2m PS/2 KVM Cable; 16 x 3m USB KVM Cable; 1 x Console cable; 1 x Cascade Cable; 1 x Firmware Upgrade Cable; 1 X Grounding Wire; 1 x Foot Pad Set; 1 x Power Adapter; 1 x Installation Guide; 1 x Warranty Card; 1 x Standard Rack Mounting Kit
    depth 6.3 in
    Product Name GCS1716KITU KVM Switch
    Rack Height 1U
    manufacturer Iogear, Inc
    Graphic Mode QXGA
    weight 6.02 lb
    brand name IOGEAR
    USB Yes
    Number of USB Ports 1
    Number of Computers Supported 16
    Input Voltage 5.3 V DC
    Maximum Video Resolution 2048 x 1536
    form factor Rack-mountable
    warranty length 3-year limited
    model name GCS1716KITU
